Alternative replacement cross reference for EBG , OHMITE , VISHAY high voltage thick film resistor

HVC 'sHVR BSP BOP Range High Voltage thick film resistor is good alternative replacement cross reference option for Vishay ,EBG, and Ohmite 's HV thick film resistor.

Alternative replacement for EBG , OHMITE , VISHAY high voltage thick film resistor

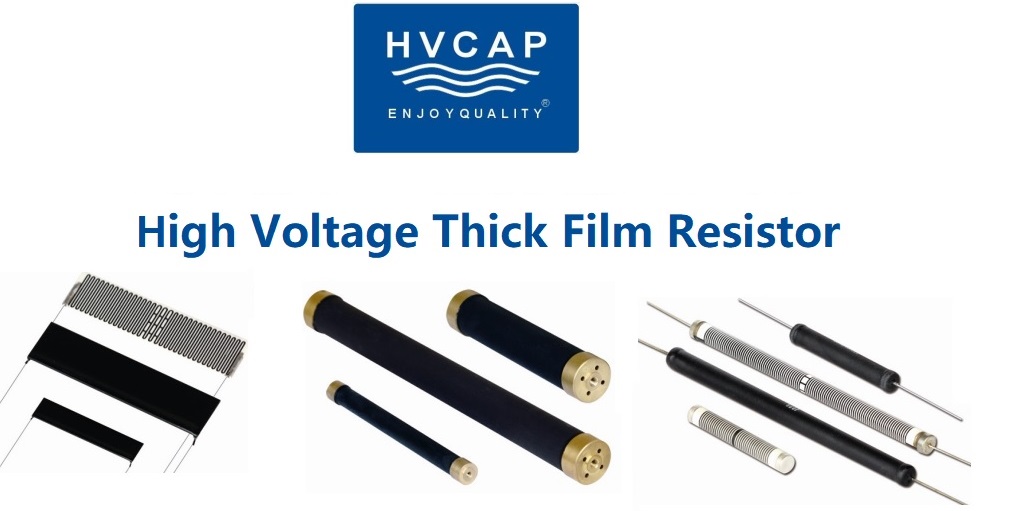

High Voltage thick film resistor is a modern type non-inductive design resistor ,composite with 96% Al2O3 substrate, and Ruthenium series(RuO2) resistance paste,and burn in 850℃. Comparing to traditional carbon film and metal film resistors. HV thick film resistor offer higher voltage withstand, higher reliability, higher working temperature,and very small temperature coefficient and stable voltage coefficient.

HVC partner with Chinese thick film material engineering expert to start up high voltage thick film resistor business in year 2017. Product range from GHP/GFP range hv resistor in planar type and BSP/GOP type in cylindrical (tube) type, later expand to high energy ceramic resistor. HVC's resistor with same quality to world famous thick film resistor brand EBG, and already well replacing famous high voltage resistor name like EBG ,Ohmite,Vishay ,TT Electronic ...

The world leading thick flim resistor player including EBG resistors in Europe and and Ohmite resistor / Vishay Techno resistor in USA. EBG resistor start thick film technology in year 1990s, it has broad presence in Europe , America and Asia, they have EBG China joint venture in year 1988 and in 2000, EBG introduction thick film technology to Chinese market. EBG 's product has accept by world top class user include ABB ,Siemens...

The giant Vishay offer their own thick flim resistor product under "Vishay Techno", USA company Techno belongs to Vishay's subsidary Sfernice,Vishay's major hv resistor market include Europe and USA.

Ohmite resistor is top famous name in American market, They acquired many smaller brand resistor manufacturer like ARCOL to provide them with thick flim technology.Ohmite majorly manufacuturing resistor in Mexico. But it is still not economic enough for mass production end customer.Ohmite thick film resistor product series include ARCOL ARC2, ARCOL ARC3, Maxi-MOX,Mini-Mox,Slim Mox,Super Mox. Production lead time still as long as 10 weeks.

HVC's HV resistor series, build up by engineer Xuyonglin, who have more than 20 year manufacturing experience in Chinese state own electronic company, also have in-deep technology know how in the field of thick flim, and also with rich marketing experince as general manager for China-Germany joint venture resistor company , then HVC able to apply same European thick film technology in more competitive cost, keeping same level to EBG and Ohmite, Vishay. Production lead time can be 3 to 4 weeks for any type of thick film resistor. HVC's HV Resistor now accepted by famous company like Hitek power,Spellman ,and many other military grade end user.

HVC's HV thick film resistor become well replacement option for high end resistor brand EBG, Ohmite,Vishay.
Major application include X-ray system,high voltage generator,HV precision voltage divider,electronmicrosope and many more.

Major technical data:
1) Resistance of HV resistor from 10 Ohm TO 10G Ohm
2) Working Temperature range from -65 ℃ to 275 ℃
3) Minimum temperature coefficient 25ppm/ ℃
4) Best resistance tolerance be 0.1%
5) High Voltage resistor max working voltage 40kv, and max rate power in 30Watt.

Following is popular HV thick film resistor model from EBG ,Omite and Vishay, HVC's BSP and GHP range can offer standard or custom replacement model.

https://www.hv-caps.com/products/High-Voltage-resistor-Flat-Style.html
